12MP Ultra HD Box Network Camera

1/1.7” progressive scan CMOS
20fps @ 12MP(4000×3000)
Triple streams, Triple power supply
DWDR, 3D DNR, ROI, Defog, HLC, EIS
Auto back focus (ABF)

Inquiry now

Overview
Specifications
Downloads

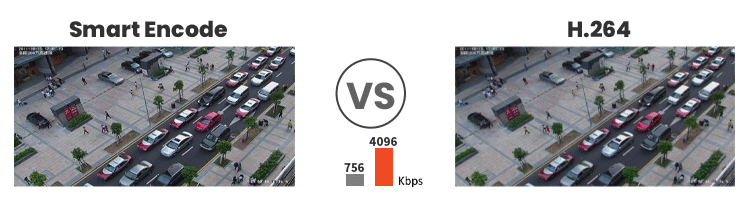

Excellent Video Compression Smart encode, the advanced video codec, saves 60% ~ 80% bandwidth compared with H.264.
	Video Analysis (IVS) IRCamSystems IVS with 11 detection modes provides advanced, accurate smart video analysis for Sunell network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
		Versatile Interfaces The SN-IPC57/80HDN/F Box Network Camera comes with a whole array of function interfaces such as PTZ control (RS485), Alarm I/O, Ethernet port, power supply interface, SD card slot, reset button, ABF button, Audio I/O, DC-IRIS port, BNC interface, power and network LEDs. Such complete interface design is available to meet your different kinds of video surveillance needs.
	Auto Back Focus (ABF) IRCamSystems Box Network Camera with ABF technology are able to adjust the position of the image sensor achieving optimal focus to complete the last step of focusing by pressing only one button.

Camera
Image Sensor	1/1.7” Progressive Scan CMOS
Effective Pixels	4000(H)×3000(V)
Electronic Shutter	Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination	Color: 0.009 Lux @ (F1.2, AGC ON) , B/W: 0.0009 Lux @ (F1.2, AGC ON)
S/N Ratio	55dB
Day/Night	Auto(ICR)
Wide Dynamic Range	DWDR
IR Range	N/A
IR On/Off Control	N/A
Auto Back Focus	Support
Lens
Focal Length	CS Mount
Iris	DC Auto Iris
Focal Length	N/A
F Number	N/A
Angle of View	N/A
Focus Control	N/A
Video
Max. Resolution	12MP (4000×3000)
Streaming Capability	3 Streams
Stream/Frame Rate	Stream1: 4000×3000 @20fps, 4096×2160, 3840×2160, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @25/30fps Stream3: VGA, CIF, QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 200kbps~16000kbps Stream2: 10kbps~6000kbps Stream3: 10kbps~3000kbps
Image Enhancement	HLC/BLC/Defog
White Balance	Auto
Gain Control	Auto/Manual
Mirror	Support
Noise Reduction	2D/3D DNR
Aisle Mode	Support
Region of Interest	Off/On (8 Zone, Rectangle)
Motion Detection	Support
Privacy Masking	Support

Audio
Compression	G.711, RAW_PCM
Bit Rate	8kbps, 16kps, 64kbps
Network
Protocols	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
Interoperability	ONVIF, SDK, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	SunView
Intelligence
IVS	Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio	1ch Input, 1ch Output, Built-in 1ch Mic
Alarm	1ch Input, 1ch Output
RS485	Support
CVBS Output	Support
Reset Button	Support
Storage	Built-in Micro SD slot, up to 128G
Electrical
Power Supply	DC12V/AC24V/POE (IEEE 802.3af)
Power Consumption	Max 5 W
Operating Temperature	Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F ) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity	Less than 90% RH
Ingress Protection	N/A
Certifications	CE/FCC
Casing	Metal
Dimensions	150.2 x 75 x 69.7 mm (5.91" × 2.95" × 2.74")
Net Weight	0.4 kg (0.88 lb)
