Green: Disk utilization 0~70%

Orange: Disk utilization 71~100%

Usually , we can log into the NVR as the default account “admin” , then access all functions in the NVR.

But if you enable the option "Enable Double Authentication"，it means for accessing some special functions, it will ask you to login with another account to enhance the security.

 take "Playback" as an example :

1. enable "Enable Double Authentication"

2. go to "play back ", it will ask you to enter another user authentication.

3. go to create a new account "test"

now you have 2 users

4. then go back to the "playback", and enter "test " to pass the verification.

1. copy these 3 files to the root directory of a USB disk.

Note：If you will format your USB flash disk, please format it in FAT32 mode.

2.turn off the NVR

3.plug the USB disk into the USB port of NVR

4.turn on the NVR

5.The NVR will execute the updating operations automatically, just keep the power supply working normally.

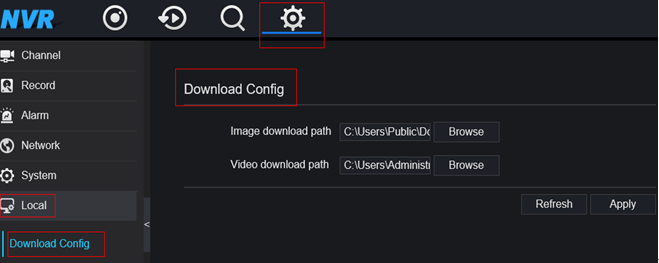

1.  go to setting->local->download config

2. the set the paths here.

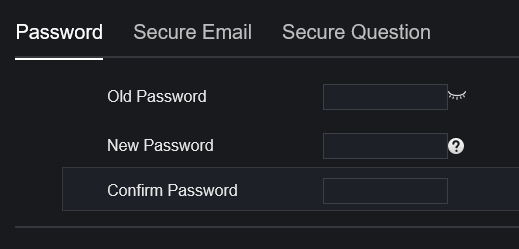

To avoid password loss, here are three functions in Security Center:

1. Password

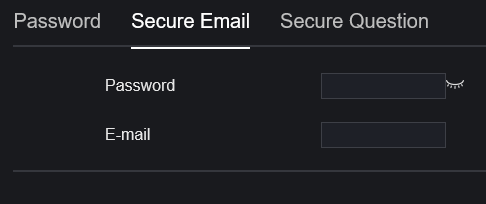

2. Secure Email

Password: it's the login password

E-mail: available Email

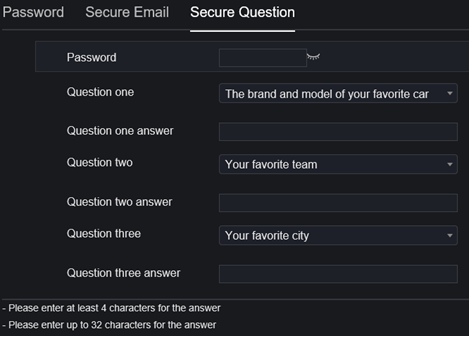

3. Secure Question

Password: it's the login password

1. Go to the Playback menu on the device’s GUI. It can be found on the task bar at the bottom of the screen when on live view.

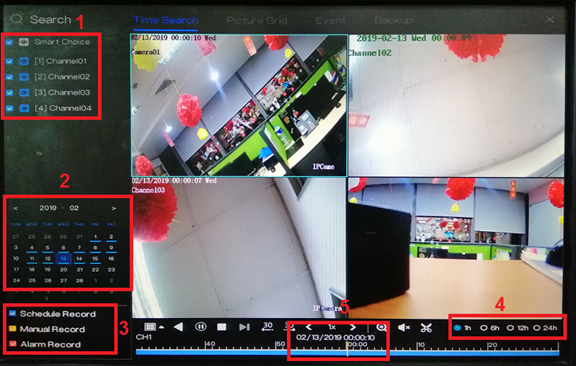

2. On Time Search, select the specific recording that you want to back up. Select your preferred:

3. After selecting the specific time, click the  icon (Start Backup) to start the backup process.

4. Drag the timeline to until when you would like to back up the recordings. The yellow bar indicates the timeframe of the recording that you will be downloading.

5. After selecting the specific timeframe of recording, click the  (End Backup) icon to save the recording.

6. There will be pop-up message regarding the backup information and an option to save. Click Save to proceed.

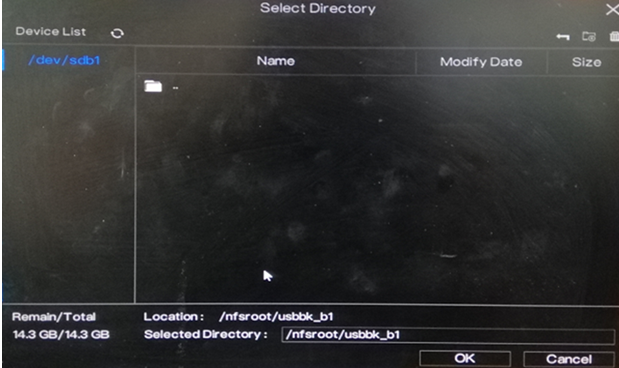

7. Select the specific folder in the USB flash drive directory and then click OK.

8. You can view the backup status in the Backup menu.

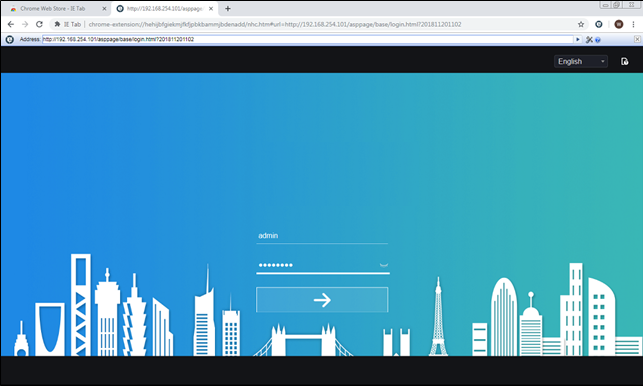

1. Enter the IP address of your NVR on the IE Tab’s address bar. You may now log in to your device using Chrome

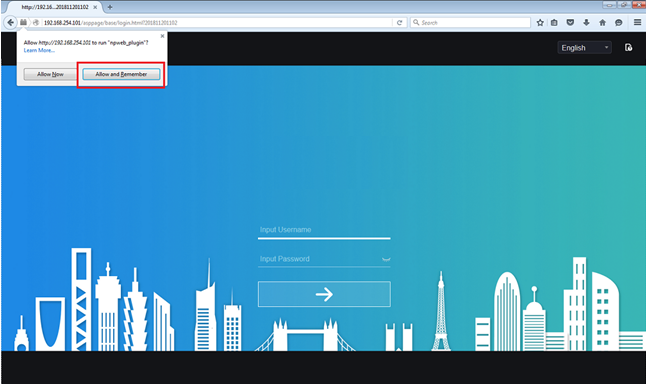

2. After clicking ‘Allow…’, you will be prompted with another message as shown below. Select ‘Allow and Remember’.

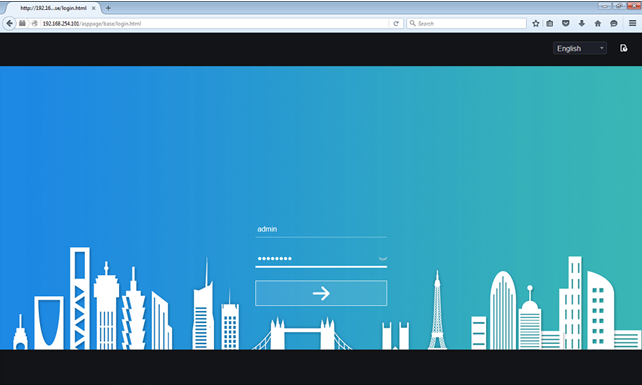

3. You may now log in to your device.

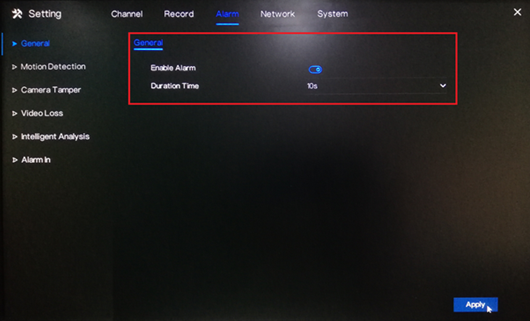

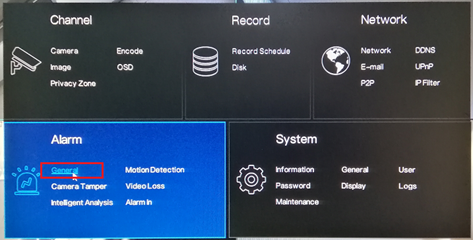

1. Click the right mouse button and select General under Alarm.

2. Turn on the Enable Alarm option and select a Duration Time from the drop-down list. Click Apply to save the settings.

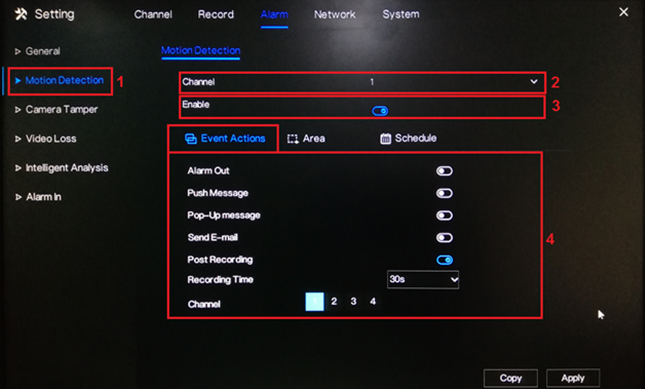

3. Go to Motion Detection. Under Channel, select a specific channel you would like to set the motion detection recording. Turn on the Enable option.

Under Event Actions, turn on the specific action you would like to have if there is a motion detected by the device.  To ensure that the device will record when there is a motion detected; don’t forget to turn on Post Recording, select a Recording Time and select the corresponding channel under Channel.

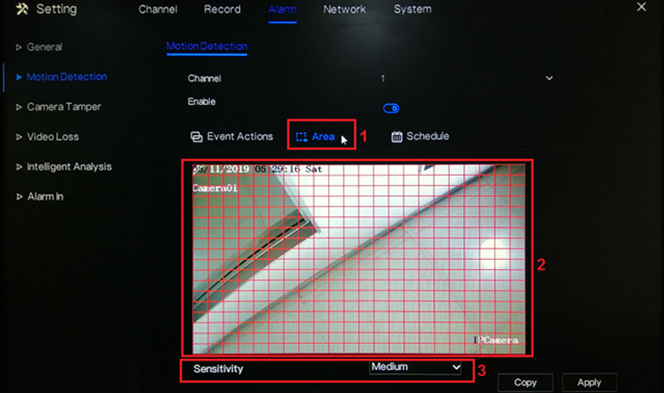

4. To configure the motion area and sensitivity, go to Area.

On the live preview on the page, you may select the motion area. Click the left mouse button on the live preview and drag the mouse on the specific area that you would like to set. The red grids represent the area that you have selected. To clear the area, just perform a double-click action using the left mouse button.

Select a Sensitivity option from the drop-down list. You may select from Low, Medium, High and Highest.

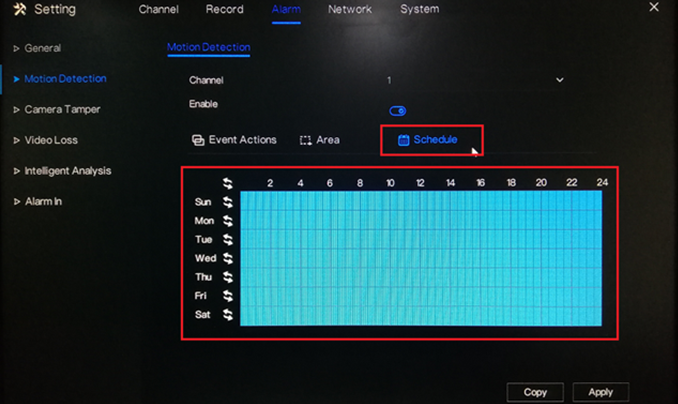

5. Under the Schedule setting, select the specific day and time that you would like to detect the motion. Use the left mouse button to select a specific box. You may also hold down and drag the left mouse button to select a wider schedule. To select all the boxes (24/7 by motion recording), just click the icon on the upper left corner. You may also click the same icon to clear the schedule.

6. Click Apply to save the settings.

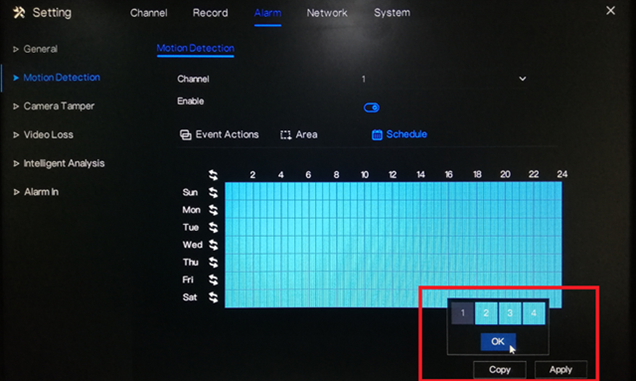

7. If you would like to copy the motion detection settings to the other channels, click Copy and select the specific channel you would like to copy the setting. Click OK then Apply to save the changes.

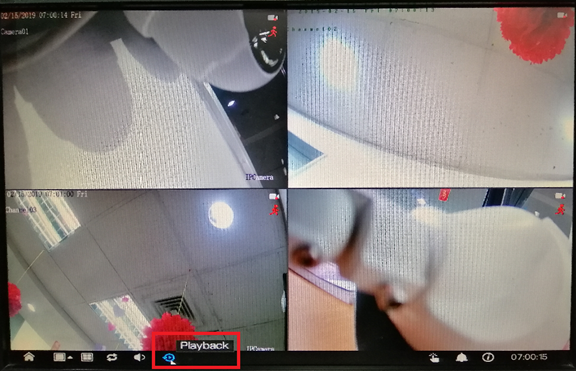

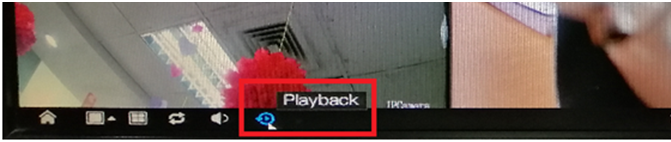

1. Go to the Playback menu on the device’s GUI. It can be found on the task bar at the bottom of the screen when on live view.

2. On Time Search, select the specific recording that you want to back up. Select your preferred:

Camera，Date，Record Type，Time Interval，Start Time

3. After selecting the specific time, click the  icon (Start Backup) to start the backup process.

4. Drag the timeline to until when you would like to back up the recordings. The yellow bar indicates the timeframe of the recording that you will be downloading.

5. After selecting the specific timeframe of recording, click the (End Backup) icon to save the recording.

6. There will be pop-up message regarding the backup information and an option to save. Click Save to proceed.

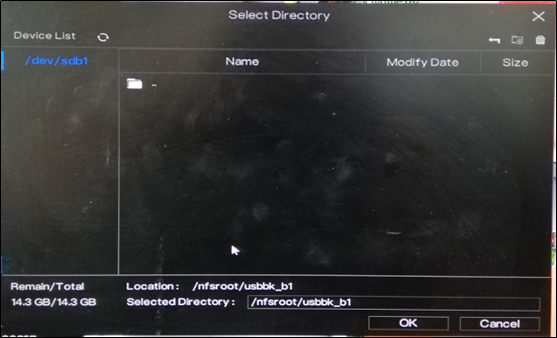

7. Select the specific folder in the USB flash drive directory and then click OK.

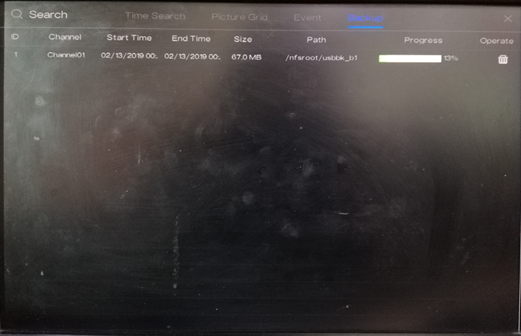

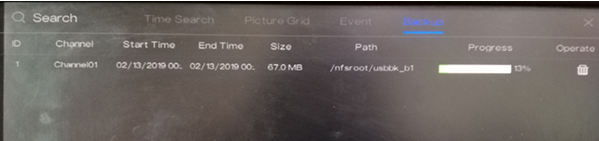

8. You can view the backup status in the Backup menu.

1. Download and install the correct application

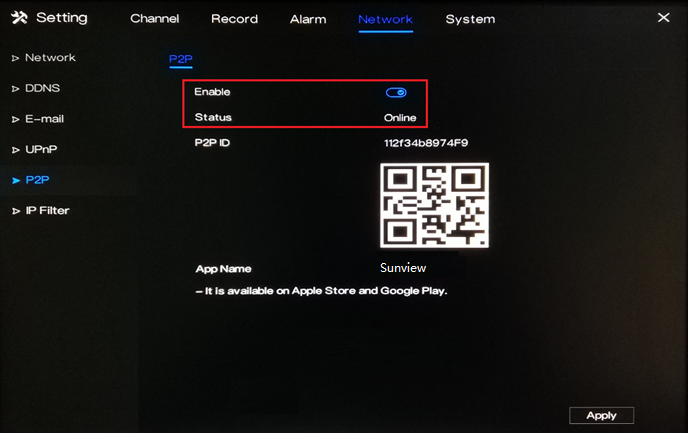

2. Ensure that the device is connected to a network and the status is ‘Online’. You can find this information in Setting > Network > P2P

3. To ensure that the device is connected to the network properly, one example in below.

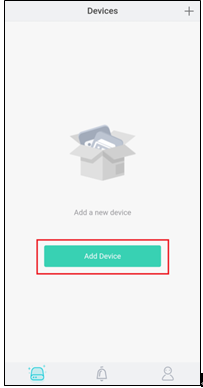

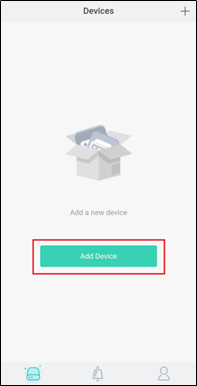

4.Open the app on your mobile phone. Click Add Device

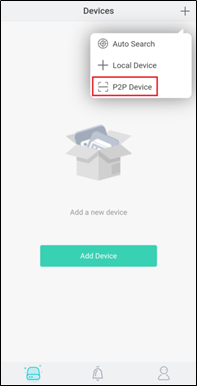

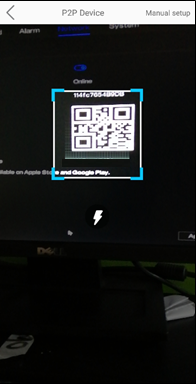

5. Tap P2P Device and then scan the QR code that is shown on your device’s interface. The QR code is located in Setting > Network > P2P.

6. Input the needed information on the app.

1) Enter a Nickname.

2) In the Port field, input the Client Port indicated in the device setting. This information can be found in Setting > Network > Network > Port.

Please note: The default value of the Client Port is 30001. If you changed it to a different number, please make sure to input the new port number in the app.

3) Enter the Username and Password of the device.

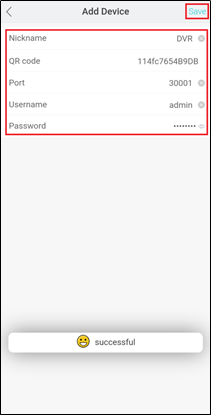

4) Hit Save at the upper right corner to the save the information.

1.Download and install the correct application

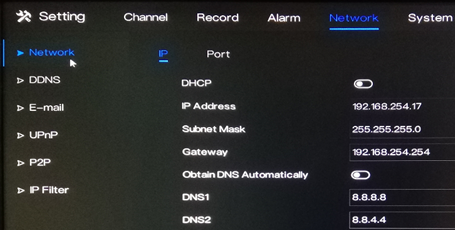

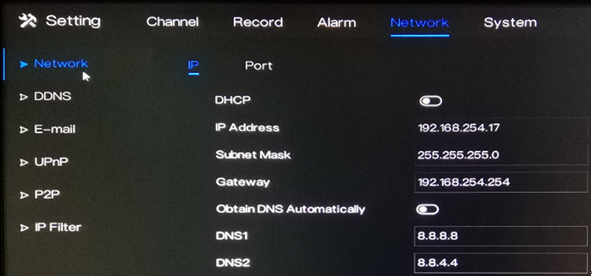

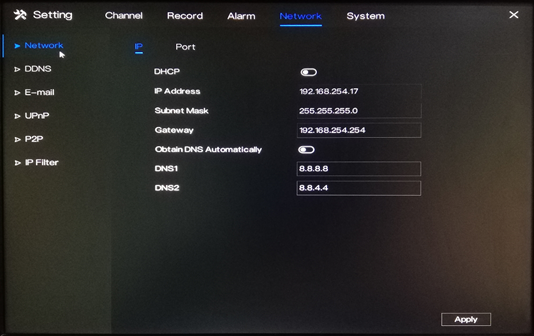

2.Ensure that the device is connected to the network properly. Check if the device’s network setting is set up correctly. You can find this in Setting > Network > Network > IP.

1)The device’s IP Address should be in the same range as the router’s gateway.

2)Subnet Mask should be same as what is indicated in the router’s network setting.

3)The Gateway should the router’s gateway or local IP address.

4)DNS 1 and DNS 2 can be your router’s DNS servers or you can use 8.8.8.8 and 8.8.4.4.

3. If you would like to use DDNS in adding the device to the  app, please enable the DDNS first.Go to      1)Setting > Network > DDNS.

2)Click the toggle switch to Enable DDNS.

3)Choose one protocol.

4)Input a Domain Name inside the box.

4. If you would like to access the device remotely via WAN (external/public) IP or DDNS address using your mobile phone, you have to open/forward the Client Port of your device.

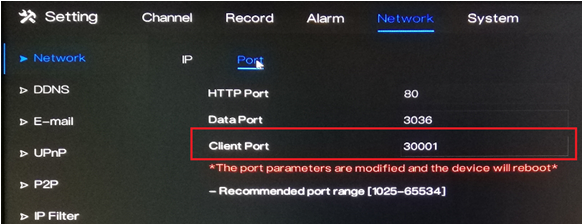

1)The Client Port can be found in Setting > Network > Network > Port.

2)The default value is 30001. If you changed this to a different number, please open/forward the new port number.

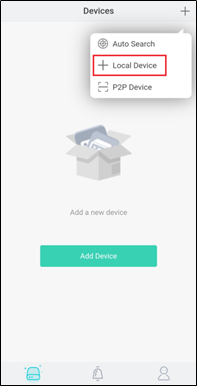

5. Open the app on your mobile phone. Click Add Device. Tap + Local Device.

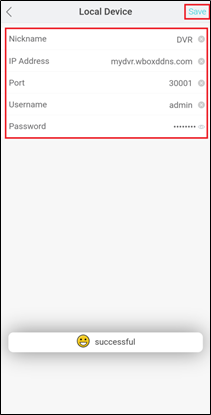

6. Input the needed information on the app.

1)Enter a Nickname.

2)In the IP Address field, enter the local IP address, WAN (external/public) IP address or the DDNS address of the device.

3)In the Port field, input the Client Port indicated in the device setting. This information can be found in Setting > Network > Network > Port.

note:The default value of the Client Port is 30001. If you changed it to a different number, please make sure to input the new port number in the app.

4)Enter the Username and Password of the device.

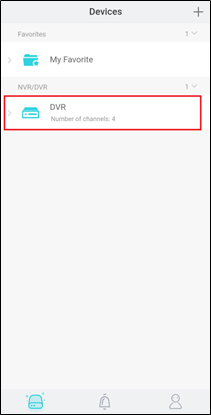

5)Hit Save at the upper right corner to the save the information.

Firmware Version: V4.2.XXXX.0000.XXX.X.XX.X.X

1. Ensure that the device is connected to the network properly.

2. Make sure that the alarm settings are properly set up and Send E-mail option is enabled.  Alarm e-mail notification can be enabled for Motion detection, video loss or camera tamper.

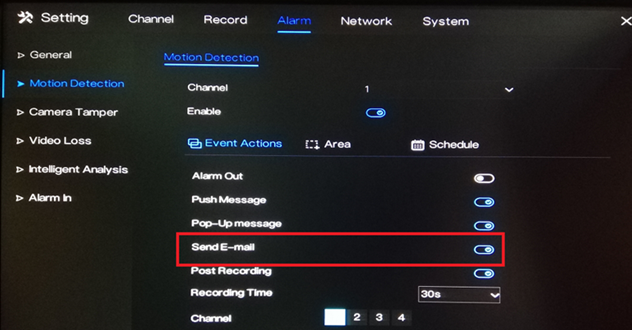

Motion Detection – Setting > Alarm > Motion Detection > Event Actions > Send E-email

Camera Tamper – Setting > Alarm > Camera Tamper > Event Actions > Send E-email

Video Loss – Setting > Alarm > Video Loss > Event Actions > Send E-email

Intelligent Analysis – Setting > Alarm > Intelligent Analysis  > Event Actions > Send E-email

3. Go to Setting > Network > E-mail.

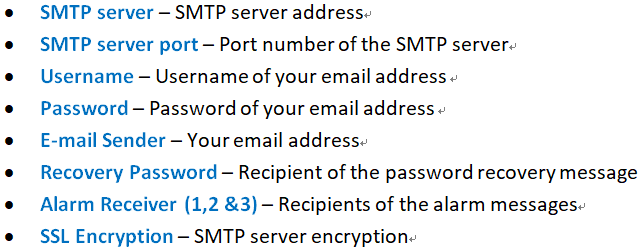

4. Input the correct SMTP setting of your account.

5. Click Test to test if the information you input are correct.

6. Check your e-mail account to see if you received the test message. If test e-mail was received successfully, click Apply to save the settings.
