2MP Starlight Motorized VF Bullet Network Camera

  • 1/2" progressive scan CMOS
  • 3.6 ~ 11 mm motorized lens
  • 50/60fps@2MP(1920×1080)
  • Triple streams
  • WDR, 3D DNR, ROI, HLC, BLC, Aisle mode, Defog, EIS
  • Smart IR up to 50 m
  • IP67
  • Overview

  • Specifications

  • Downloads

  • Accessories

Excellent Video Compression

Smart encode, the advanced video codec, saves 60% ~ 80% bandwidth compared with H.264.



Video Analysis (IVS)

IRCamSystems IVS with 11 detection modes provides advanced, accurate smart video analysis for Sunell network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.






Wide Dynamic Range (WDR)

Without WDR technology, images may be underexposed or overexposed, making it impossible to identify objects and people. Our WDR technology solves this by applying multiple exposure levels, contrast enhancement, and advanced algorithms that lower noise and increase the image signal.



Smart IR

IRCamSystems smart IR technology used High Beam and Low Beam combination, for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

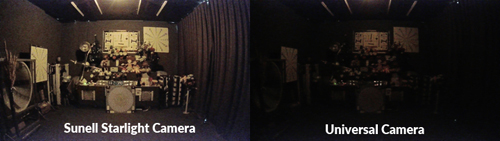

0.001 Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.




IP67 Waterproof

Supporting IP67-rated weather proofing, the camera is well protected against adverse impact to ensure the performance.






Camera

Image Sensor

1/2” Progressive Scan CMOS

Effective Pixels

1920(H)×1080(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.001 Lux @ (F1.2,AGC ON), B/W: 0 Lux @ (IR LED ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)

Wide Dynamic Range

WDR 120dB

IR Range

Up to 50 m (164.0 ft)

IR On/Off Control

Auto/ Manual

Pan/Tilt/Rotation  Range

Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

Lens

Lens Type

Motorized

Iris

Auto Iris

Focal Length

3.6 ~ 11 mm

F Number

F1.4

Angle of View

102.3° ~ 44°

Focus Control

Motorized

Video

Max. Resolution

1080P (1920×1080)

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1:1920×1080, 1280×720 @ 50/60fps

Stream2: D1, VGA, 640×360, CIF/QVGA @ 25/30fps

Stream3: VGA, CIF, QVGA @ 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200kbps ~ 12Mbps

Stream2: 100Kbps ~ 6Mbps

Stream3: 100Kbps ~ 3Mbps

Image Enhancement

HLC/BLC/Anti-shake/Defog /WDR

White Balance

Auto

Gain Control

Auto/Manual

Mirror

Support

Noise Reduction

2D/3D DNR

Aisle Mode

Support

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Support

Audio

Compression

G.711, RAW_PCM

Bit Rate

8kbps, 16kps, 64kbps

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox

Management Software

SunView

Intelligence

IVS

Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

1ch Input, 1ch Output

Alarm

N/A

CVBS Output

Support

Reset Button

Support

Storage

Built-in Micro SD slot, up to 128G

Electrical

Power Supply

DC12V/POE (IEEE 802.3af)

Power Consumption

Max 8 W

Operating Temperature

Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F )

Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP67

Certifications

CE/FCC

Casing

Metal

Dimensions

264.5 × 82.7 × 80.3 mm (10.41" × 3.56" × 3.16")

Net Weight

0.83 kg (1.83 lb)
