4-ch 1 HDD 4K NVR with 4-ch POE

  • Up to 4ch IP cameras access
  • Up to 8MP resolution recording
  • 1 SATA hard disk each up to 8TB
  • 1 RJ45 10M/100M network interface
  • 4ch POE ports
  • Smart search & playback
  • Support cloud upgrade
  • Overview

  • Specifications

  • Downloads


4K IP Camera Video Input and 4K Local Video Output

Supporting 4K IP camera video input and 4K local video output, NVR can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.





Smart Search

The NVRs support alarm management and event search of  IRCamSystems's video analytics and Smart alarm. Search rules and information such as time search,  picture grid, and event (alarm input, motion-detection, camera tamper, video loss, intelligent analysis alarm and abnormal alarm) can be shown on playback search. The user can search by single or multiple event types, playback triggered events and then export these search results to video clips.

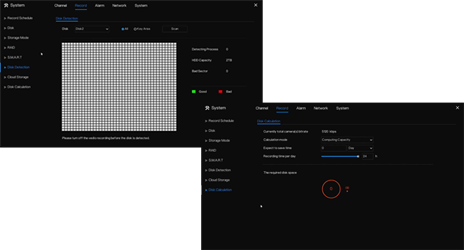

Disk Management

The disk management supported by IRCamSystems's NVR can help users detect the status of the hard disk, prevent partition damage to the hard disk and avoid data loss. And it can help users calculate storage capacity in two ways: capacity and time, so that users can set code stream parameters and storage strategies reasonably.

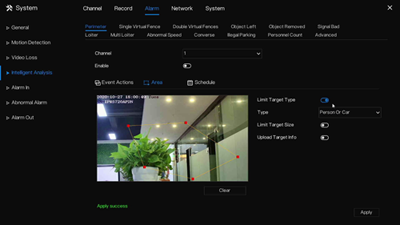

Intelligent Analysis Management

IRCamSystems's NVR supports alarm configurations and event search of Sunell Intelligent Analysis (IVS). Once suspicious events detected, the devices can trigger alarms and recordings, helping you improve video surveillance efficiency.


Versatile Interfaces
The NVR comes with a whole array of function interfaces such as an LAN port, power supply interface, HDMI port, VGA port, USB port, 4 PoE ports, audio I/O and alarm I/O. The full set of interfaces provides all necessary features for effective surveillance.



Video Input

IP Camera Input

4 Channel

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

40 Mbps

Video Output

HDMI Output

3840×2160,1920×1080, 1440×900, 1280×1024

VGA Output

1920×1080, 1440×900, 1280×1024

Decoding Capacity

1ch 8MP, 4ch 1080P@30fps

Dual Stream

Support

Multi-screen Display

1/4

Recoding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P,  D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network

Network

Interface

1 RJ-45 port (10/100 Mbps)

PoE

4 Ports (IEEE 802.3af), 32W

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF, SDK, CGI

Storage

HDD

1 SATA Ports, up to 8TB for each HDD

eSATA

N/A

Cloud Storage

Support

Interface

Audio I/O

1/1

Alarm Input

4ch

Alarm Output

1ch

USB

3 ports (USB 2.0 × 3)

General

Power Supply

DC48V/1.25A

Power Consumption

< 5 W (without HDD)

Operating Conditions

-10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions

255 × 237 × 47.5 mm (10.04 × 9.33 × 1.87 inch)

Net Weight

0.9 kg (1.98 lb) without HDD
