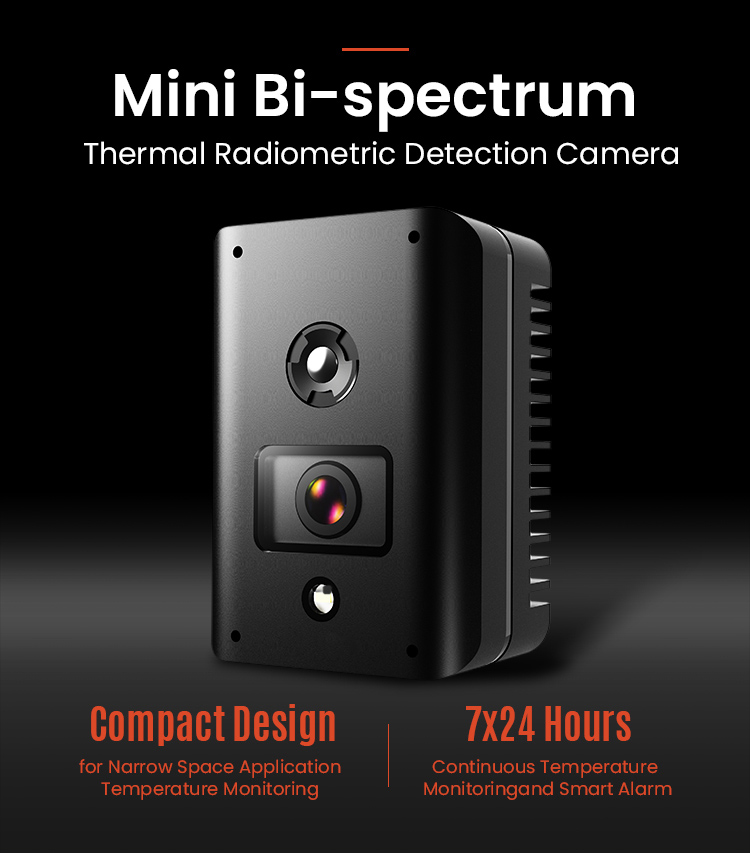

Mini Bi-spectrum Thermal Imaging Camera


  • Uncooled VOx Micro bolometer with 256×192 resolution
  • Sensitivity ≤65mK
  • Support 3 temperature measurement rule types (Spot, Line, Area)
  • Temperature range: -40°C ~ 150°C (-40°F ~ 302°F)
  • 17 color control
  • DVE image enhance

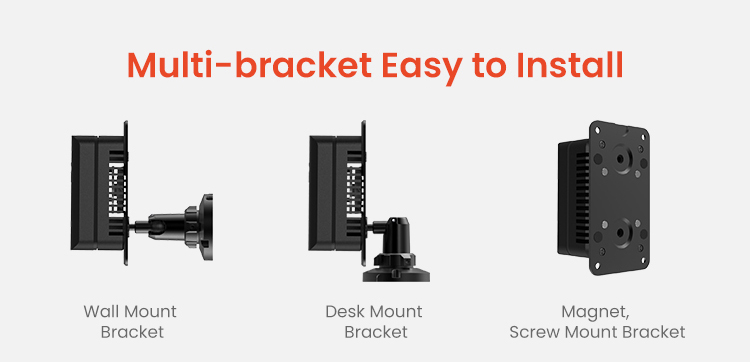

  • Multi-bracket easy to install


  • Overview

  • Specifications

  • Downloads

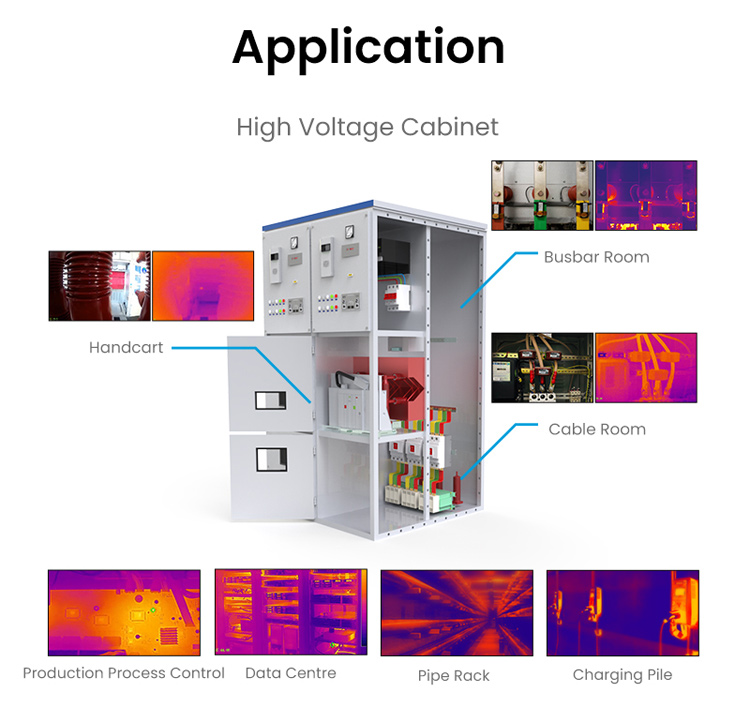

IRCamSystems D2 combines thermal imaging with a visual camera in one small, affordable package for continuous temperature monitoring and alarming. The D2 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment. Compact and easy to install, the D2 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.





Thermal Camera

Detector Type

Uncooled VOx Micro bolometer 256×192

Resolution

256(H)×192(V), Image can be scaled up to 704×576

Thermal Sensitivity (NETD)

≤ 65mK @ F1.0, 300K

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/Contrast/Mirror/FFC/3D DNR

Color Palettes

White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes

Lens Type

Fixed

Focus Control

Manual Focus

F No.

F1.0

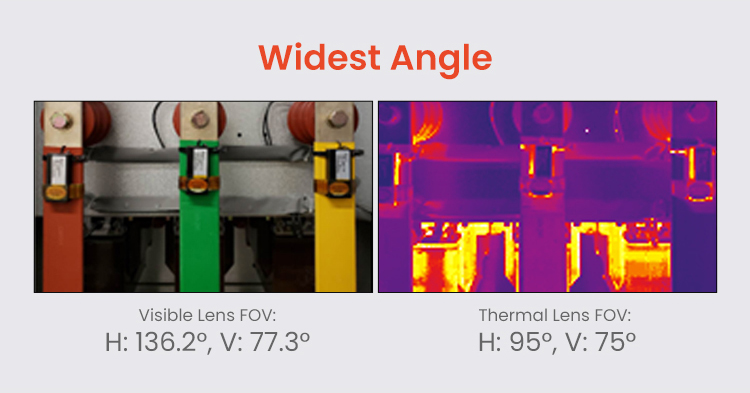

Angle of View

H: 95°, V:75°

Visible Camera

Image Sensor

1/2.8" Sony CMOS

Effective Resolution

1920 (H)×1080(V)

Shutter Speed

1/5 ~ 1/20,000s

Min. Illumination

Color: 0.1Lux @(F1.2, AGC ON), B/W: 0.01Lux

S/N Ratio

More than 55dB

W-LED

1pcs

Max Aperture

F2.0

Angle of View

H: 136.2°, V: 77.3°

Focus Control

Fixed

Video and Audio

Frame Rate

Main Stream: Thermal: D1 @25/30fps, Visible: 1920×1080 @25/30fps

Sub Stream: Thermal: CIF @25/30fps, Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Thermal: 100Kbps~6Mbps

Visible: main stream: 500Kbps~12Mbps; sub stream: 100Kbps~6Kbps

Digital Zoom

16x

Mirror

Support

Defog

Support

Motion Detection

Support

Privacy Masking

Off/On (4 Area, Rectangle)

DVE Image Enhance

Support

Intelligence

Intelligent Functions

Motion detection, Disk alarm, I/O alarm, Temperature alarm

IVS

Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

Temperature Detection

Temperature Detection

Support 3 temperature measurement rule types (Spot, Line, Area)

Temperature Alarm

Over temperature alarm, Temperature difference  alarm

Accuracy

±2 / ±2%

Response Time

≤ 30ms

Temperature measurement range

-40°C ~ 150°C (-40°F ~ 302°F)

Temperature display mode

Temperature target >5, Display absolute temperature value,

Temperature target ≤5, Display relative temperature value (temperature difference DEV = highest value - average)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocols

IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x

Interoperability

ONVIF, CGI, SDK

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

N/A

Alarm

1ch Alarm Input, 1ch Alarm Output

RS485

Support

USB Interface

Support

BNC Output

Support

Reset Button

Support (Built-in)

General

Power Supply

DC12V ±10%

Power Consumption

Max 10 W

Working Temperature

-20°C~60°C(-4°F~140°F)

Storage Conditions

0~ 90% RH

Certifications

CE/FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

63 × 43 × 92mm (2.48 × 1.69 × 3.62 inch)

Net Weight

450 g (0.99 lb)
