Mini Bispectral PTZ Network Camera

Thermal Camera

Detector Type

Uncooled IRFPA Microbolometer

Effective Pixels

400(H) ×300(V)

Pixel Size

17 um

Thermal Sensitivity (NETD)

40mK @ F1.0, 300K

Spectral Range

8 ~ 14 um

Image Setting

Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI

Color Palettes

Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes

Thermal Lens

Lens Type

Fixed

Focus Control

Motorized Focus

Focal Length

25 mm

F No.

F1.0

Angle of View

H:15.4°, V:11.6°

Detection Distance Fire (1m*1m)

735 m

Detection Distance Man (1.8m*0.5m)

735 m

Detection Distance Vehicle (4m*1.5m)

2255 m

Recognition Distance Fire (1m*1m)

245 m

Recognition Distance Man (1.8m*0.5m)

184 m

Recognition Distance Vehicle (4m*1.5m)

564 m

Visible Camera

Image Sensor

1/2.8" Sony CMOS

Effective Resolution

2048 (H)×1536 (V)

Shutter Speed

1/5 ~ 1/20,000s

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.1 Lux

S/N Ratio

More than 55 dB

Focal Length

4.5 ~ 135 mm

Max Aperture

F1.6 ~ F4.4

Angle of View

H:59.8° ~ 2.3°

Optical Zoom

30x

Focus Control

Auto/Manual

Intelligence

Intelligent Functions

Motion detection, Disk alarm, I/O alarm, Temperature alarm

IVS

Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless, Tilt: +90° ~ -90°

Pan/Tilt Speed

Pan: 0.01° ~ 30°/s, Tilt: 0.01° ~ 10°/s

Preset Speed

Pan: 0.01° ~ 30°/s, Tilt: 0.01° ~ 10°/s

Presets

400

PTZ Mode

8 Auto Scan, 12 Tour, 6 Track

Speed Setup

Auto/Manual (0-8)

Power Off Memory

Support

Idle Motion

Activate Preset/ Scan/Tour/Pattern if there is no command in the specified period

Video and Audio

Frame Rate

Main Stream: Thermal: D1 @25/30fps, Visible: 2048×1536 @25/30fps

Sub Stream: Thermal: CIF @25/30fps, Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Thermal: 100Kbps~6Mbps

Visible: main stream: 500Kbps~12Mbps, sub stream: 100Kbps~6Kbps

Region of Interest

Off/On (8 Zone, Rectangle)

Digital Zoom

16x

Mirror

Support

Defog

Support

Motion Detection

Support

Privacy Masking

Off/On (4 Area, Rectangle)

DVE Image Enhance

Support

Audio Compression

G.711, AMR, RAW_PCM (Optional)

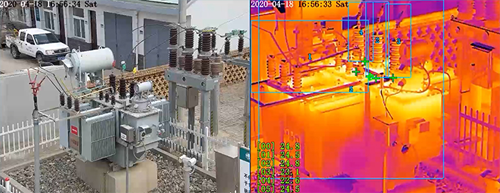

Temperature Detection

Temperature Detection

Support 3 temperature measurement rule types (Spot, Line, Area)

Temperature Alarm

Over temperature alarm, Temperature difference  alarm

Accuracy

±2℃ / ±2%

Response Time

≤ 30ms

Theory of temperature measurement range

-40°C ~ 150°C (-40°F ~ 302°F)

Temperature display mode

Temperature target ＞5℃, Display absolute temperature value,

Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocols

IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x

Interoperability

ONVIF, CGI, SDK

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording, Micro SD card 128GB

Web Viewer

<IE11, Chrome, Firefox

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

Interface

Ethernet

2 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

N/A

Alarm

1ch Alarm Out

RS485

Support

BNC Output

Support

Reset Button

Support (Built-in)

General

Power Supply

DC24V

Power Consumption

Max 40 W

Working Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Conditions

0 ~ 90% RH

Certifications

CE /FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

322 ×192 ×163 mm (12.68 × 7.56 × 6.42 inch)

Net Weight

5 kg (11.0 lb)
