12MP Ultra HD Fisheye Network Camera

  • 1/1.7” progressive scan CMOS
  • 20fps @ 12MP(4000×3000)
  • Multiple de-warping mode
  • Image distortion correction
  • Support camera & software de-warping
  • DWDR, 3D DNR, ROI, Defog, HLC
  • Smart IR up to 15 m
  • IP67
  • Overview

  • Specifications

  • Downloads

  • Accessories

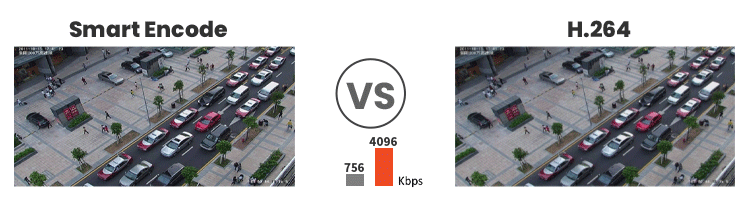

Excellent Video Compression

Smart encode, the advanced video codec, saves 60% ~ 80% bandwidth compared with H.264.



Video Analysis (IVS)

IRCamSystems IVS with 11 detection modes provides advanced, accurate smart video analysis for Sunell network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

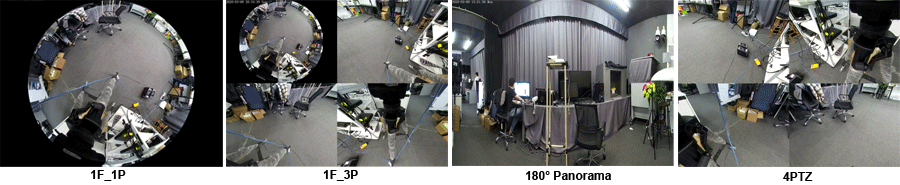

IRCamSystems 12MP 360° Panoramic Fisheye Network Camera is to bring panoramic experience, which would easily reach the effect of over 4 regular network cameras , bringing 360° surround view with zero blind spots. At the same time, it brings up to more display modes including 1 fisheye, Single Panoramic, Double Panoramic, 4PTZ and 1F+3PTZ to meet different needs.





Versatile Interfaces

The fisheye network camera comes with a whole array of function interfaces such as Ethernet port, power supply interface, power and network LEDs, SD card slot, reset button, audio I/O and alarm I/O. Such complete interface design is available to meet your different kinds of video surveillance needs.



IP67 Water-proof

Supporting IP67-rated weather proofing, the camera is well protected against adverse impact to ensure the performance.





Camera

Image Sensor

1/1.7” Progressive Scan CMOS

Effective Pixels

4000(H)×3000(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.009 Lux @ (F1.2,AGC ON)B/W: 0 Lux @ (IR LED ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)

Wide Dynamic Range

DWDR

IR Range

Up to 15 m (49.2 ft)

IR On/Off Control

Auto/ Manual

Lens

Lens Type

Fixed

Iris

Fixed Iris

Focal Length

1.83 mm

F Number

F2.4

Angle of View

180°×180°

Focus Control

Fixed

Video

Max. Resolution

12MP (4000×3000)

Streaming Capability

2 Streams

Stream/Frame Rate

Stream1: 4000×3000 @20fps, 4096×2160, 3840×2160,  3000×3000, 2560×2560, 1920×1080 @25/30fps

Stream2: 1280×960, D1, 720×720 @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 500kbps~16000kbps

Stream2: 100kbps~8000kbps

Image Enhancement

HLC/BLC/Defog

White Balance

Auto

Gain Control

Auto/Manual

Mirror

Support

Noise Reduction

2D/3D DNR

Aisle Mode

Support

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Support

Audio

Compression

G.711, RAW_PCM

Bit Rate

8kbps, 16kps, 64kbps

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Management Software

SunView

Intelligence

IVS

Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

1ch Input, 1ch Output, Built-in 1ch Mic

Alarm

1ch Input, 1ch Output

Reset Button

Support

Storage

Built-in Micro SD slot, up to 128G

Electrical

Power Supply

DC12V/AC24V/POE (IEEE 802.3af)

Power Consumption

Max 10.2 W

Operating Temperature

Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F )

Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP67

Certifications

CE/FCC

Casing

Metal

Dimensions

Φ162 × 52.2 mm ( Φ6.38" × 2.06" )

Net Weight

0.7 kg (1.54 lb)
