32MP Multi-Sensor Panoramic Network Camera

  • Four 1/1.8” 8MP progressive scan CMOS
  • 25fps@7680×4320
  • 72 panoramic view
  • Unique de-warping image
  • Support camera & software de-warping
  • ROI, Defog, HLC, BLC, AWB, AGC, EIS, IVS
  • IP66


  • Overview

  • Specifications

  • Downloads

IRCamSystems multi-sensor panoramic camera adopts four sensor front splicing technology to achieve 360° horizontal coverage and 360° vertical coverage of the field of view Angle, which can be used for large areas such as public square, arena, airport, intersection, etc.

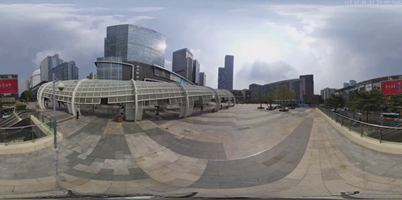

720° Panoramic View, 8K Ultra High Definition

The Multi-sensor Panoramic Network Camera  is perfect for whole picture viewing experience. It catches 360° horizontal coverage and 360° vertical coverage, achieving 720° edge stitching image with four sensors, which is one technological breakthrough in Sunell's image algorithm. The Camera features with 8K ultra high resolution better restoring the images to guarantee superb image quality.

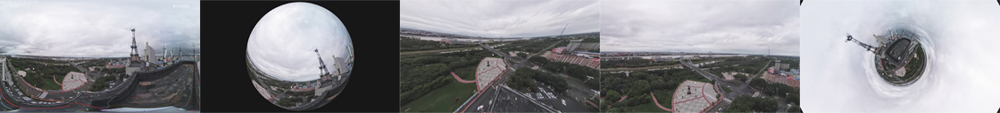

5 Panoramic Experience Modes

IRCamSystems 720° Panoramic Network Camera is born to bring panoramic experience, bringing 720° surround view with zero blind spots. At the same time, it brings up to 5 display modes including 720 ° Panorama, Crystal Ball, Perspective, Fisheye, and Asteroid, which fit for your different viewing needs.

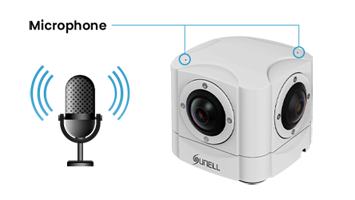

Built-in 2-ch Microphone

The Panoramic camera has a built-in waterproof microphone and uses advanced coding to provide clearer sound, ensuring IP66 weatherproof capability and reliable performance.







IP66 Weather-proof

IP66-rated housing of the Panoramic Network Camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions.


Experience Real-time VR View Via 5G






Camera

Image Sensor

Four 1/1.8” 8MP Progressive Scan CMOS

Effective Pixels

7680(H)×4320(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color:0.002Lux@(F2.2, AGC ON), B/W:0.0002Lux@( F2.2, AGC ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)

Wide Dynamic Range

DWDR

IR Range

N/A

IR On/Off Control

N/A

Lens

Lens Type

Fixed

Iris

Fixed Iris

Focal Length

2.2 mm

F Number

F2.2

Angle of View

360°×360°

Focus Control

Fixed

Video

Max. Resolution

Edge stitching 7680×4320

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 7680×4320 @25fps,5760×3240/3840×2160 @25fps/30fps

Stream2: 2560×1440/1080P/D1 @25fps/30fps

Stream3: 720P/640×360/D1 @25fps/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 500Kbps16Mbps

Stream2: 500Kbps~12Mbps

Stream3: 100Kbps~8Mbps

Image Enhancement

HLC / BLC / Anti-shake / Defog /  DWDR

White Balance

Auto

Gain Control

Auto/Manual

Noise Reduction

2D/3D DNR

Smart IR

N/A

Mirror

N/A

Aisle Mode

N/A

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Privacy Masking

Support

Video Mode

Full Screen Stretch, 360 degrees panorama, Crystal Ball, Asteroid, Auto Cruise

Audio

Compression

G.711, RAW_PCM

Bit Rate

8kbps, 16kps, 64kbps

Network

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Management Software

SunView

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

1ch Input, 1ch Output, Built-in 2ch Mic

Alarm

1ch Input, 1ch Output

Reset Button

Support

Storage

Built-in Micro SD slot, up to 128G

Electrical

Power Supply

DC12V/POE+ (IEEE 802.3af)

Power Consumption

Max 10 W

Operating Temperature

Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F )

Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

Metal

Dimensions

112.2×112.2×90mm

Net Weight

1.25 kg
