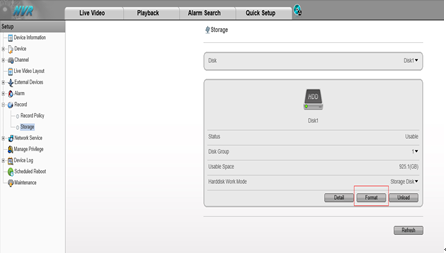

For old interface: go to Record-->Storage-->Format

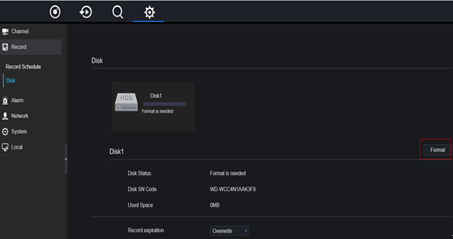

For new interface: go to Record-->Disk-->Format

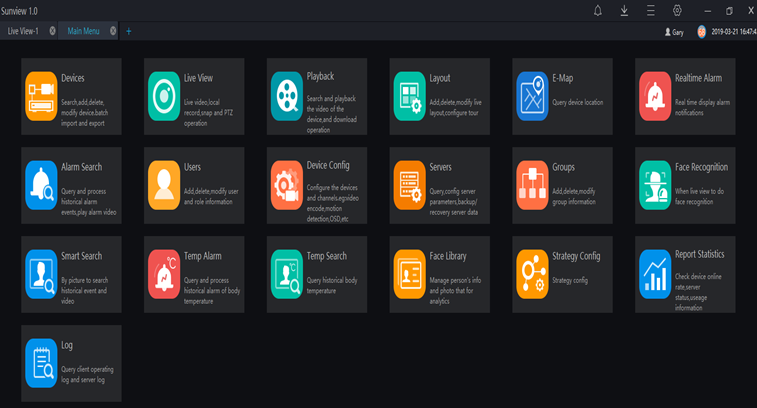

Please use our VMS "Sunview" to manage multiple NVRs.

and here is the download link :

http://www.sunellsecurity.com/products.php?id=51

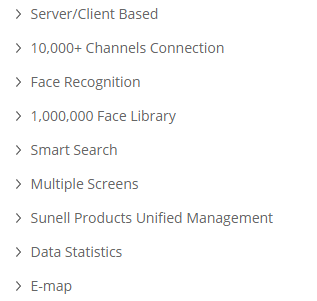

brief features:

1. go to web interface of IP Camera firstly, and make sure if  the audio  is working well.

2. Decrease the audio-in setting.

3. change to use other connection cables or test other IP cameras with the same cable.

4. change another NVR for a test.

1. Please make sure to install it correctly and safely.

2. Please choose well-known brands of HDD : Seagate, WD,TOSHIBA

3. Ensure the life of HDD.

4. try to format the HDD.

The transmission distance of PoE power supply is not determined by PoE technology, but by the type and quality of network lines。

Five kinds of UTP and over five kinds of UTP mainly serve computer network. According to 100Base-TX of Fast Ethernet, their communication rate is 100mbps

When using PoE power supply, the maximum length should not exceed 100 meters。But in actual construction, in order to ensure the quality of the project, 80-90 meters are usually taken

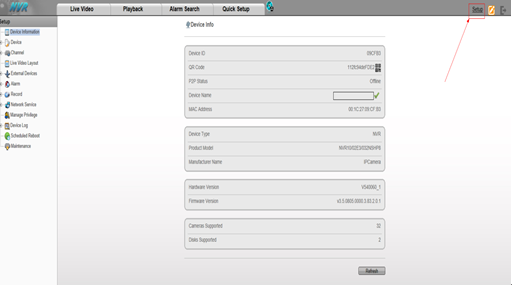

For old interface: go to  "Setup"->"Device Information"

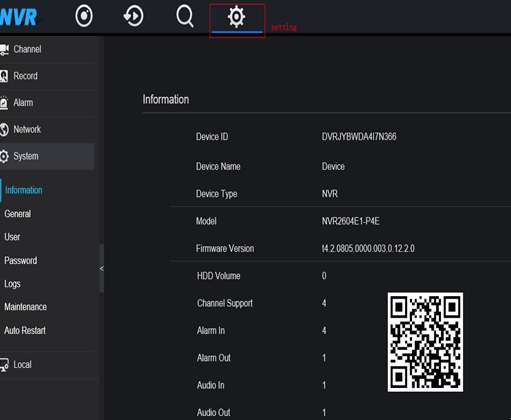

For new interface: go to  "setting”，then you can get Information

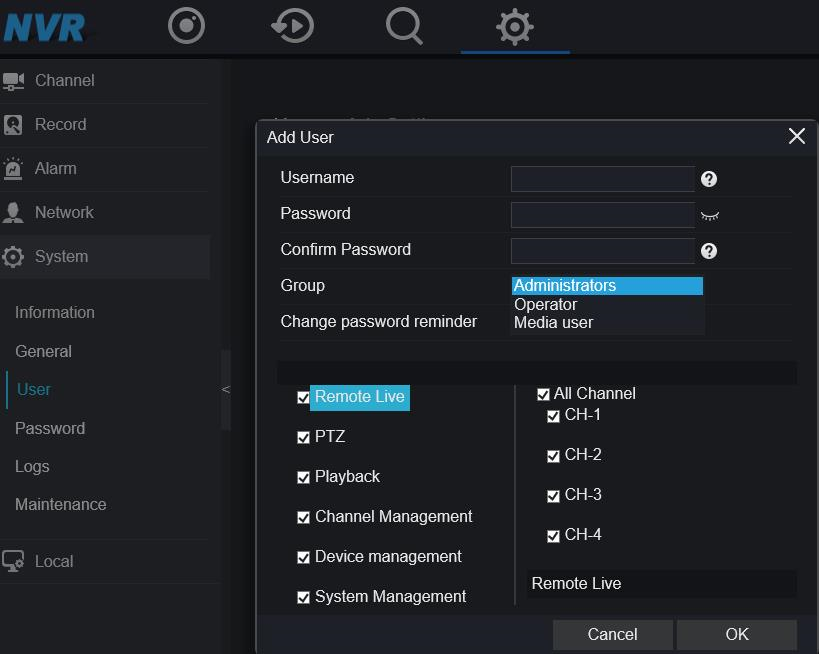

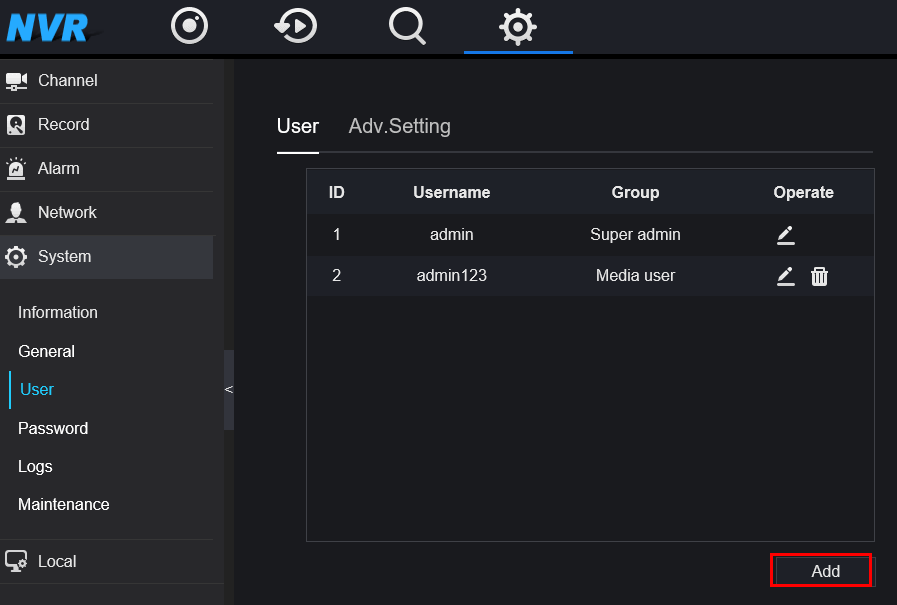

At System-User-Add:

3 different group of user can be created:

Administrator/Operator/Media user,

• Administrators: Remote Live,PTZ,Playback,Channel Management,Device Management,System Management;

• Operator：Remote Live,PTZ,Playback, System Management;

• Media user: Remote Live,Playback;

(please mind that the admin account is the super user , it can not be deleted);

Channel selection:

1,Power supply of IPC is not stable,for example, IPC will consume more power at night with IR Led enabled,which may cause electricity insufficient.

2,Network bandwidth issue, the switcher performance is insufficient

3,Camera issue:

    If only the specified camera or channel has this issue,we recommend you replace with a normal camera to check

    If offline issue happens randomly with all channel,we suggest checking reason 1 and 2

    If offline happens to all channel at same time,please check if the camera is powered by centralized supply,

    please check the power status

If camera is sunell camera, and you don't know the ip, please connect camera and PC at same local network(or directly connect camera to PC),

using IPsearch tool to find the correct IP,then add it to NVR;

If camera is from third party,please check if they provide tool to search the camera IP,

Then add it to NVR by input the IP,user name and password of camera

1,please check if the username and password is correct when adding the camera

2,network cable issue,please use CAT5e or CAT6e cable,It is recommended to use 8 cores for the wire,

the POE cable sequence for data transmit is 1/2/3/6, for positive power is 4/5, for negative power is 7/8,

the distance of cable should be controlled around 70 meters

3,camera is not powered on, please check if camera support POE

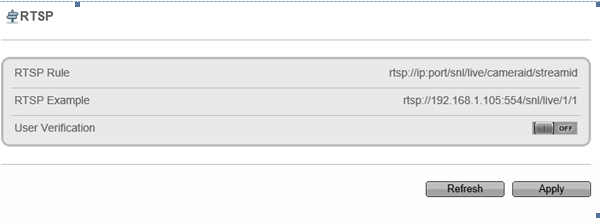

RTSP format : rtsp://ip:port/snl/live/cameraid/streamid

Example: rtsp://192.168.1.19:554/snl/live/1/1

Please connect the NVR to Router, and make sure the DHCP function of router is enabled,

and open the function of automatically getting IP on NVR network setting menu
