When the camera is installed at unstable condition (such as at vehicle or tree,
the anti-shake function will increase stability of image
please refer to the table as below
|
Focal Length |
Field of view (e.g) |
Recommend monitor distance |
|
2.8mm |
98.5° |
About 3 meters |
|
4mm |
79° |
About 6 meters |
|
6mm |
49° |
About 10 meters |
|
8mm |
40° |
About 20 meters |
|
12mm |
23° |
About 30 meters |
|
16mm |
19.2° |
About 50 meters |
|
25mm |
12.4° |
About 80 meters |
|
※Field of view angle varies from different model, refer to the official website for accurate parameter |
||

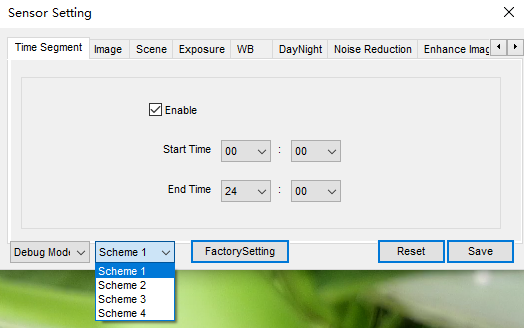

At sensor setting menu,you can set at most 4 scheme for image setting and period,
After the setting is completed, switch the mode back to standard mode, then the camera will apply the image parameter according to which time segment it was in,
if time is not in these 4 scheme, it will apply the default setting,
If time cross two different scheme, the previous scheme will work.

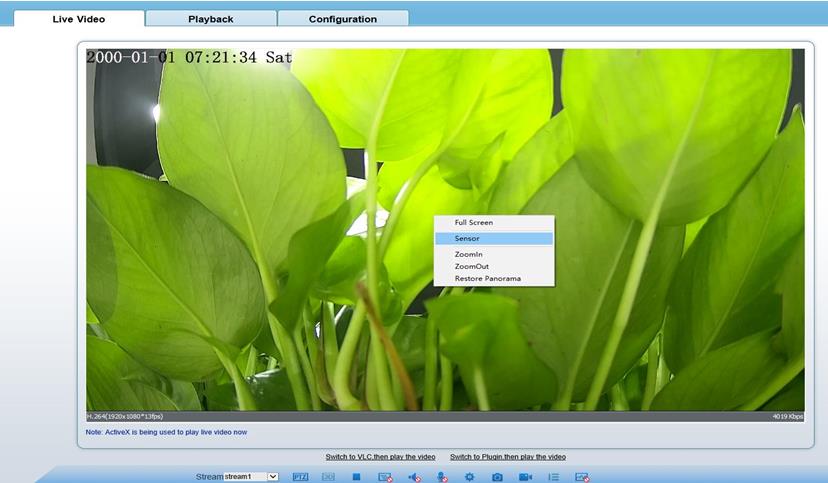

Right click the live video ,select sensor ,switch to debug mode and set it at the image menu :
As DHCP is opened by default, if camera is not allocated with IP by DHCP service,
its default IP is 192.168.0.120,and login account/password : admin/admin
There are two cases:
1.If the reflect light is from the Infrared light, please turn off the infrared of camera ,
add a white light for supplement ,all the infrared cameras are not recommended for license plate ,it will not able to see the plate clear with a infrared light.
2,If the reflect light is from car lamp, please adjust the installation angle of camera,avoid the direct light from coming car lamp, or you could choose a camera with strong light suppression fucntion.
